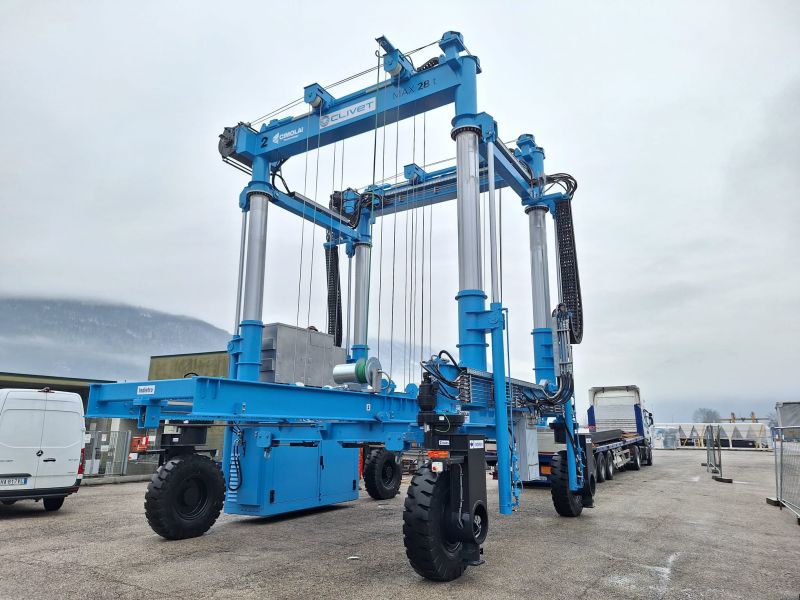

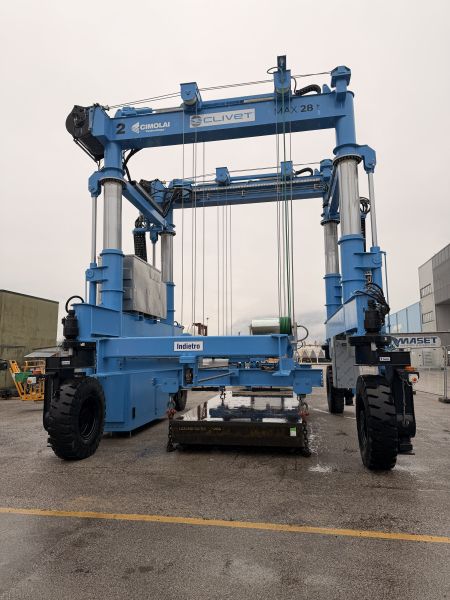

Straddle Carrier with electric drive, engineered for handling and lifting 20ft ISO TANK containers up to 28 tonnes, with a key advantage: continuous height adjustment even under full load.

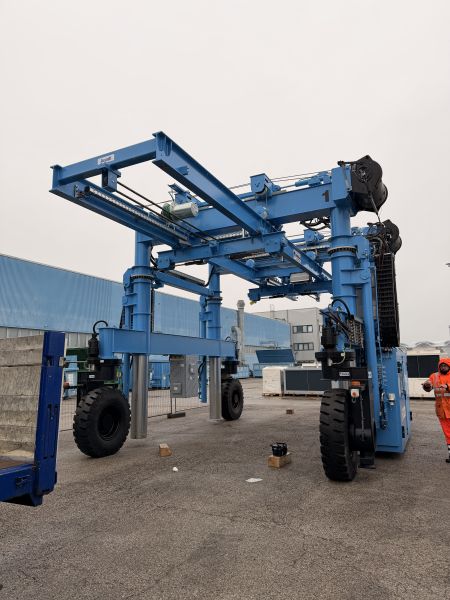

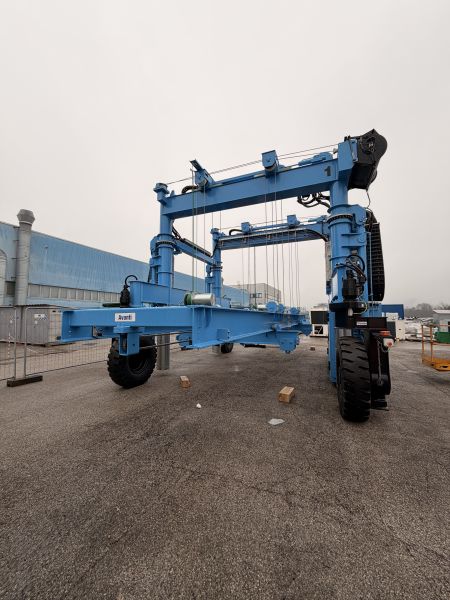

Operating height ranges from 5.15 m to 7.75 m (total travel 2.6 m), enabled by four hydraulically actuated double-stage side telescopic masts—ideal where adaptability, precision, and stability are essential.
The machine combines battery-electric power with a dedicated hydraulic system managing travel, lifting, and steering. The hydraulic power unit is arranged in-line with a 45 kW electric motor, coupling unit, hydraulic pumps, and valve blocks; the opposite beam houses the lithium battery pack, electrical cabinet, and inverter for a compact, service-friendly layout. Portal lifting is performed by four heavy-duty double-acting cylinders (one per telescopic upright), equipped with load-holding valves and controlled lowering valves to enhance safety. Hydraulic and electrical lines are routed through ABS cable carriers, supporting smooth movement and long-term reliability.
A high-performance solution for industrial logistics and port/intermodal operations requiring a special lifting vehicle tailored to demanding workflows.
Cimolai Technology’s mobile straddle transporter are designed to offer maximum operational versatility and structural strength in the most demanding applications. Each unit is fully customizable to customer specifications: load capacity, dimensions, layout, accessories and environmental conditions.
Available in two main structural configurations:
Single-girder: ideal for single or tandem use, perfect for transporting linear elements such as beam elements or elongated artifacts.
Double-girder: more robust and suitable for integration with a wide range of spreaders, for safe handling of bulky and irregular loads.
Distinctive features:
Load capacity customizable according to the project (from tens to hundreds of tons)
Telescopic versions: extendable in width or height to accommodate loads of varying sizes
Designed to work in extreme conditions, withstanding severe temperature fluctuations, humidity and aggressive weather conditions
Electronic steering system for precise maneuvering even in tight spaces
Can be made in full electric version, for sustainable and environmentally friendly handling.
