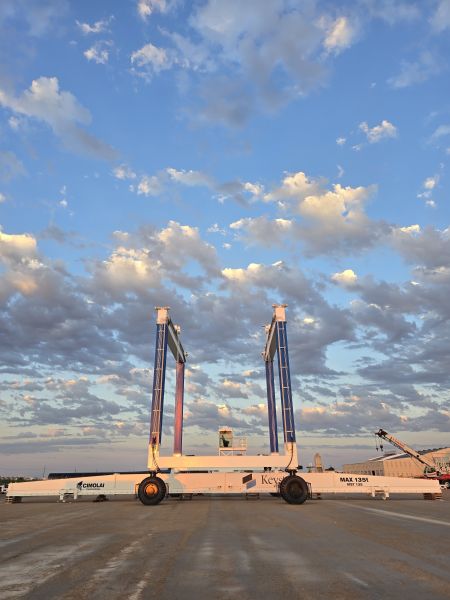

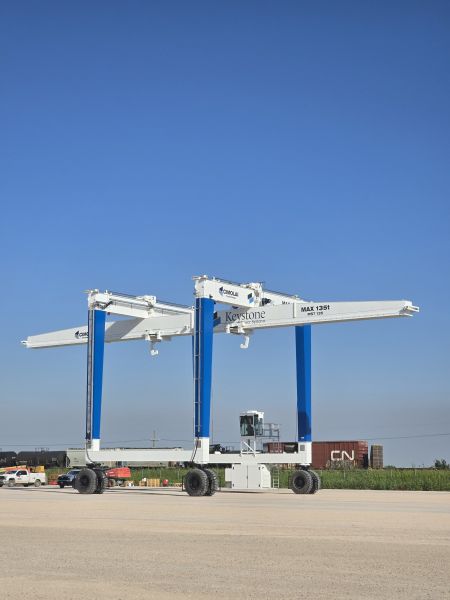

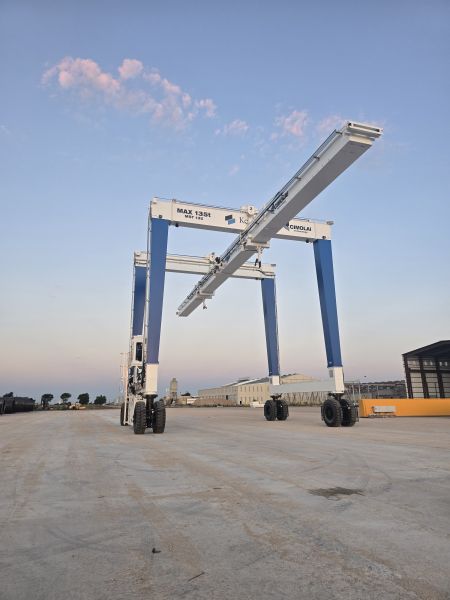

Straddle Carrier equipped with a spreader beam and two movable under-spreader beam trolleys with j-hooks, this system allows independent movement via a capstan system. The special j-hooks are purpose-built for handling wind tower segments from the inside of the flange, preserving the external coating.
For extra protection, the inner part of the hooks features steel mesh-reinforced rubber. Each trolley integrates a main section with an articulated hook, and a secondary section that adjusts positioning with hydraulic cylinders and a manual safety pin for secure locking.
A tailor-made solution for the wind energy sector, combining strength, precision, and safety.
Cimolai Technology's mobile straddle transporter are designed to offer maximum operational versatility and structural strength in the most demanding applications. Each unit is fully customizable to customer specifications: load capacity, dimensions, layout, accessories and environmental conditions.
Available in two main structural configurations:
Single-girder: ideal for single or tandem use, perfect for transporting linear elements such as beam elements or elongated artifacts.
Double-girder: more robust and suitable for integration with a wide range of spreaders, for safe handling of bulky and irregular loads.
Distinctive features:
Load capacity customizable according to the project (from tens to hundreds of tons)
Telescopic versions: extendable in width or height to accommodate loads of varying sizes
Designed to work in extreme conditions, withstanding severe temperature fluctuations, humidity and aggressive weather conditions
Electronic steering system for precise maneuvering even in tight spaces
Can be made in full electric version, for sustainable and environmentally friendly handling.
